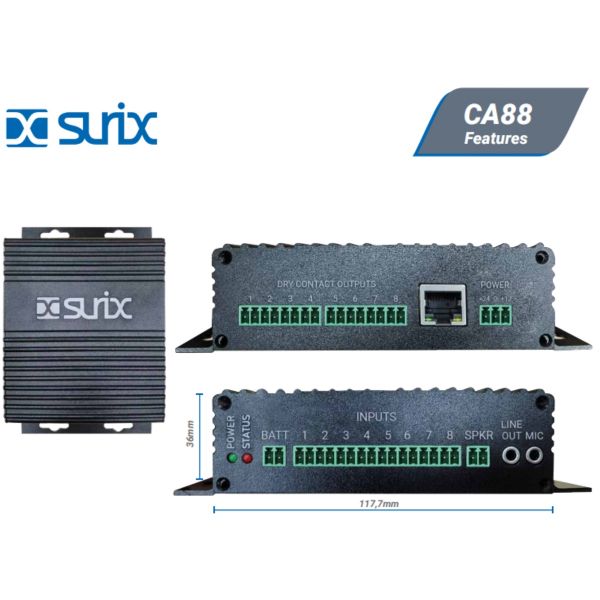

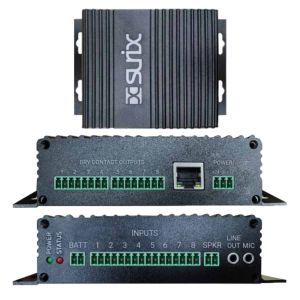

PLACA IP POE CA88 12V/24V 8 RELAY CONTACTO SECO 8 ENTRADAS INTERIOR

- Dimensions: 100 x 110 mm (PCB)
- Power: PoE / 12~24 Vdc
- 1 Ethernet port- 8 Dry Contact relays NO/NC
- 8 Input (buttons)- Battery charge sensor
- Speaker (low impedance output 30 W)
- Line out (high impedance)- Microphone input
- Status LED (software controlled)
- Power on LED

Functionalities

- GUI English, Spanish & Portuguese
- SIP 2.0 (2 accounts)
- Registrates as extension of IP PBX or works standalone with Direct IP Address calls
- Unicast and Multicast
- Prerecorded messages
- Access control standalone or client-server
- HTTP / MQTT total control REST AP
- QR decoding- Echo cancellation
- VPN remote management for critical applications

Protocols
TCIP/IP
SIP
G.711 / G.722 /G.729
Bluetooth (Optional)
MySQL
HTTP
RTSP
RTP
FTTP
Syslog
SNTP
SNMP
DHCP
